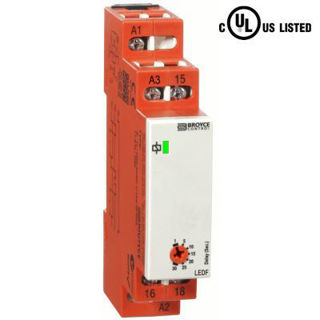

BROYCE CONTROL TRUE DELAY OFF TIMER 0.5-10MIN 24VAC./DC/230VAC
SKU: LEDF
*
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
S$65.24
  • True Delay Off
  • Single voltage
  • Single time range
  • SPDT Relay output
  • 17.5mm wide, DIN Rail mount
  • UL Listed

The output relay energises as soon as power is applied. When power is removed, the set time delay period commences and the relay will remain energised for this period. After the delay has elapsed, the relay de-energises. Power must be removed and re-applied to restart the function over again.

  • True Delay Off
  • Single voltage
  • Single time range
  • SPDT Relay output
  • 17.5mm wide, DIN Rail mount
  • UL Listed

The output relay energises as soon as power is applied. When power is removed, the set time delay period commences and the relay will remain energised for this period. After the delay has elapsed, the relay de-energises. Power must be removed and re-applied to restart the function over again.

  • Timing function: True Delay Off
  • Supply voltage*:  24VAC/DC // 110VAC, 24VAC/DC // 230VAC +/-15%
  • Time delay*: 0.5 – 10s, 2 – 60s, 0.5 – 10m
  • Output: SPDT 8A @ 250V (AC1)
  • Dimensions(mm): W:17.5 x H:89 x D:66.5

* To be specified when ordering
